DSVPN（IPSec+OSPF）配置实验

需求说明

总部和2个分支办公室打通内网互联，分支间互访建立动态直连隧道，隧道采用IPsec加密并运行OSPF维护内部路由。

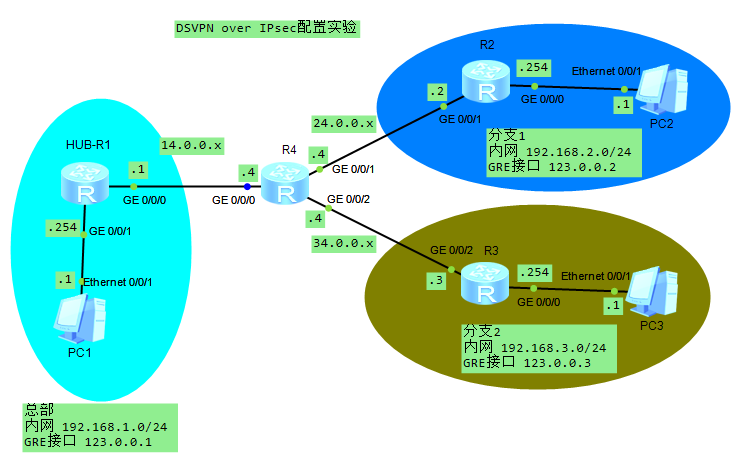

拓扑图


配置思路

采用GRE P2MP协议，配合IPsec加密，隧道内运行OSPF。

  1. 打通互联网R1-R2-R3-R4，配置设备和PC接口IP
  2. 配置总部和分支R1-R2-R3 GRE隧道接口，R2/R3开启nhrp向总部R1注册
  3. 配置总部和分支R1-R2-R3 OSPF并宣告内网和隧道接口IP
  4. 修改GRE隧道参数。启用nhrp动态多播支持，OSPF网络为广播并关闭分支DR选举
  5. 配置IPsec提议，IKE提议，IKE对等体，IPsec模板调用以上配置
  6. 关闭R1/R2/R3隧道接口，调用IPsec模板。启用HUB-R1隧道后再启用分支隧道接口
  7. 测试配置，检查OSPF邻居，总部ping分支1-2，分支1到分支2查看路由跟踪，抓包查看加密状态。
1.打通互联网R1-R2-R3-R4，配置设备和PC接口IP。PC1/PC2配置如图
#HUB-R1
sysn HUB-R1
int g0/0/0
 ip addr 14.0.0.1 24
int g0/0/1
 ip addr 192.168.1.254 24
ip route-static 0.0.0.0 0 14.0.0.4

#R2
sysn R2
int g0/0/0
 ip addr 192.168.2.254 24
int g0/0/1
 ip addr 24.0.0.2 24
ip route-static 0.0.0.0 0 24.0.0.4


#R3
sysn R3
int g0/0/0
 ip addr 192.168.3.254 24
int g0/0/2
 ip addr 34.0.0.3 24
ip route-static 0.0.0.0 0 34.0.0.4

#R4
sysn R4
int g0/0/0
 ip addr 14.0.0.4 24
int g0/0/1
 ip addr 24.0.0.4 24
int g0/0/2
 ip addr 34.0.0.4 24
2.配置总部和分支R1-R2-R3 GRE隧道接口，R2/R3开启nhrp向总部R1注册
#HUB-R1
int tun0/0/0
 ip addr 123.0.0.1 24
 tunnel-protocol gre p2mp
 source 14.0.0.1

#R2
int tun0/0/0
 ip address 123.0.0.2 24
 tunnel-protocol gre p2mp
 source 24.0.0.2
 nhrp entry 123.0.0.1 14.0.0.1 register

#R3
int tun0/0/0
 ip address 123.0.0.3 24
 tunnel-protocol gre p2mp
 source 34.0.0.3
 nhrp entry 123.0.0.1 14.0.0.1 register
3.配置总部和分支R1-R2-R3 OSPF并宣告内网和隧道接口IP
#HUB-R1
ospf 1 router-id 14.0.0.1
 area 0
  network 123.0.0.1 0.0.0.0
  network 192.168.1.0 0.0.0.255

#R2
ospf 1 router-id 24.0.0.2
 area 0
  network 123.0.0.2 0.0.0.0
  network 192.168.2.0 0.0.0.255

#R3
ospf 1 router-id 34.0.0.3
 area 0
  network 123.0.0.3 0.0.0.0
  network 192.168.3.0 0.0.0.255
4.修改GRE隧道参数。启用nhrp动态多播支持，OSPF网络为广播并关闭分支DR选举
#HUB-R1/R2/R3
int tun0/0/0
 ospf network-type broadcast
 nhrp entry multicast dynamic

#R1/R2
int tun0/0/0
 ospf dr-priority 0
5.配置IPsec提议，IKE提议，IKE对等体，IPsec模板调用以上配置。(为区分ike对等体,在分支R2/R3配置ike peer hub v2,总部R1配置ike peer spoke v2)
#HUB-R1/R2/R3
ipsec proposal p1
 encapsulation-mode transport
 esp authentication-algorithm sha2-512
 esp encryption-algorithm aes-256

ike proposal 1
 encryption-algorithm aes-cbc-256
 dh group14
 authentication-algorithm aes-xcbc-mac-96

ike peer spoke v2
 pre-shared-key cipher huawei
 ike-proposal 1

ipsec profile s1
 ike-peer spoke
 proposal p1
6.关闭R1/2/3隧道接口，调用IPsec模板。启用HUB-R1隧道后再启用分支隧道接口
#HUB-R1/R2/R3
int tun0/0/0
shut
ipsec profile s1

#HUB-R1
int tun0/0/0
undo shut

#R2/R3
int tun0/0/0
undo shut

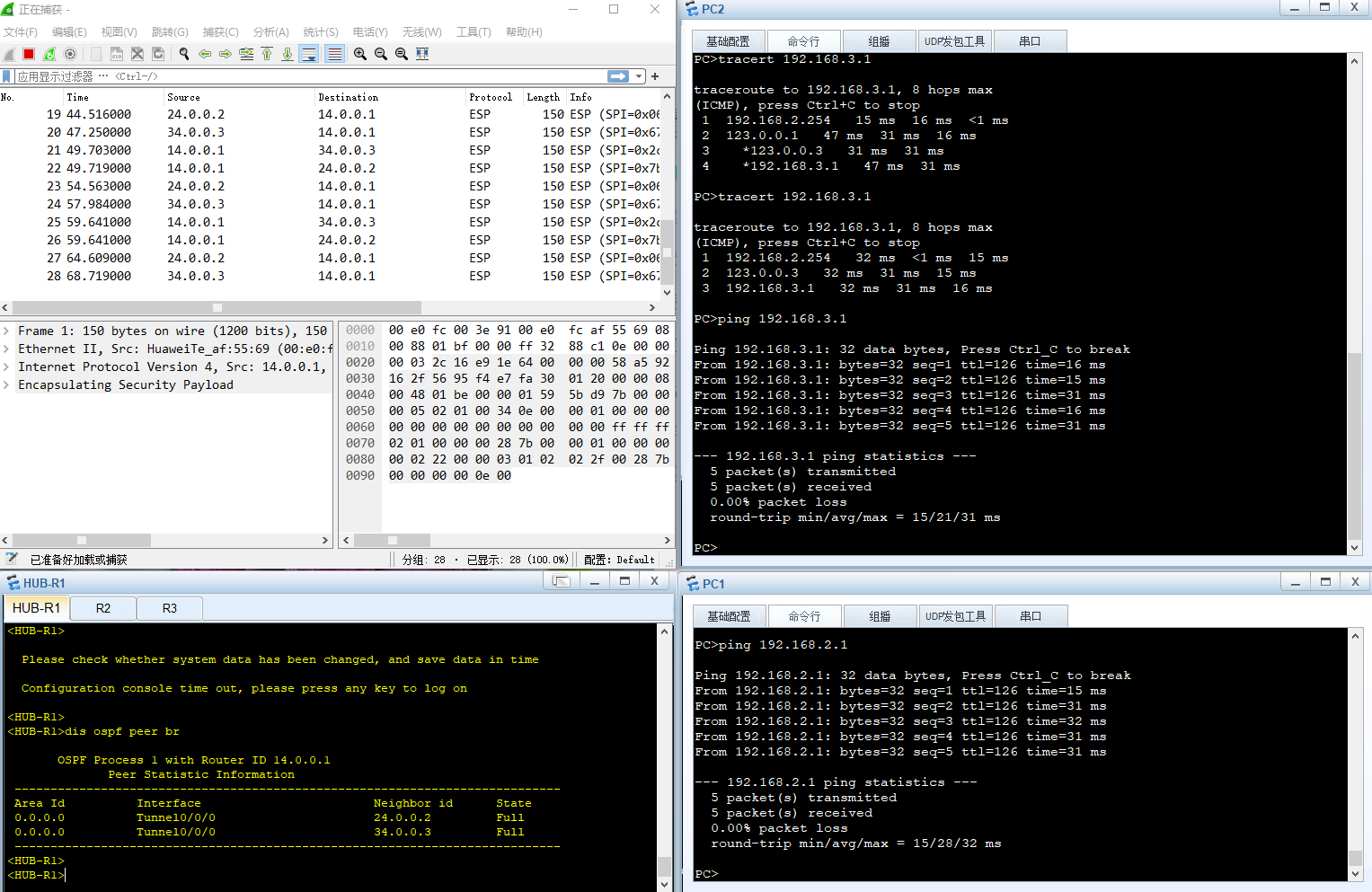

7.测试配置，检查OSPF邻居，总部PC ping分支1，分支1 PC2到分支2 PC3查看路由跟踪（第一次经过了总部转发，第二次就走正常分支间直连隧道了），抓包查看加密状态。达到预期效果。
